SE-8151 Series Rubber Belt Weighing Scale
I. Product Summary
SE-8151 Series Rubber Belt Weighing Scale can fit with various belt conveyor, so that it can continuously measure and accumulate the weight of materials being conveyed on the belt conveyor.
The equipment is safe, reliable, precise and easy to install. It can run in industrial sites in serious adverse circumstances and is widely used for measuring in fields like building materials, metallurgy, mining, electricity, chemical industry, grain and light industries.
SE-8151 Series Rubber Belt Weighing Scale can fit with various belt conveyor, so that it can continuously measure and accumulate the weight of materials being conveyed on the belt conveyor.
The equipment is safe, reliable, precise and easy to install. It can run in industrial sites in serious adverse circumstances and is widely used for measuring in fields like building materials, metallurgy, mining, electricity, chemical industry, grain and light industries.

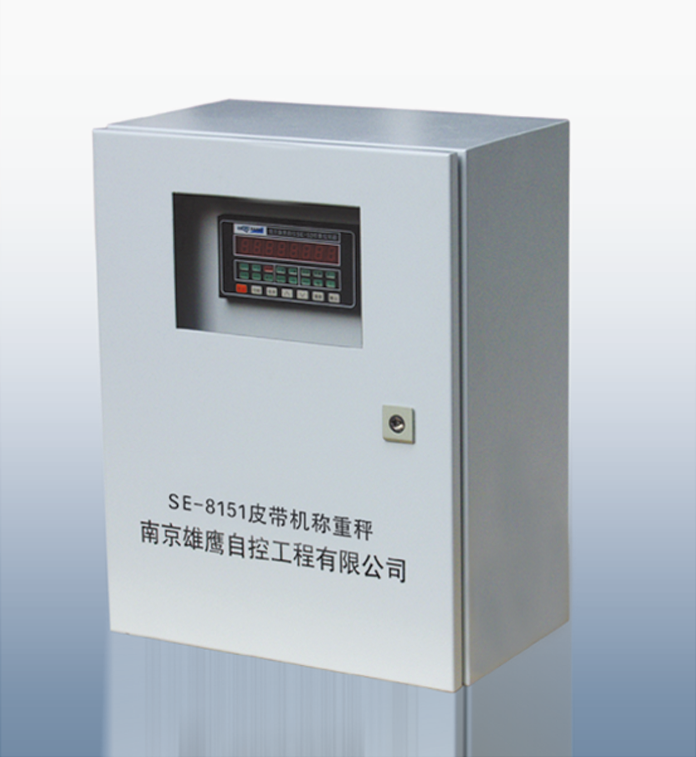

We will provide integrated control cabinet for our customers. The cabinet has functions including weight displaying, accumulation of weighing, overload alarming and communication. It can also be connected to an industrial control computer or DCS.
Dimension of the cabinet: 400×500×250 mm (W×H×D)
II. Structure

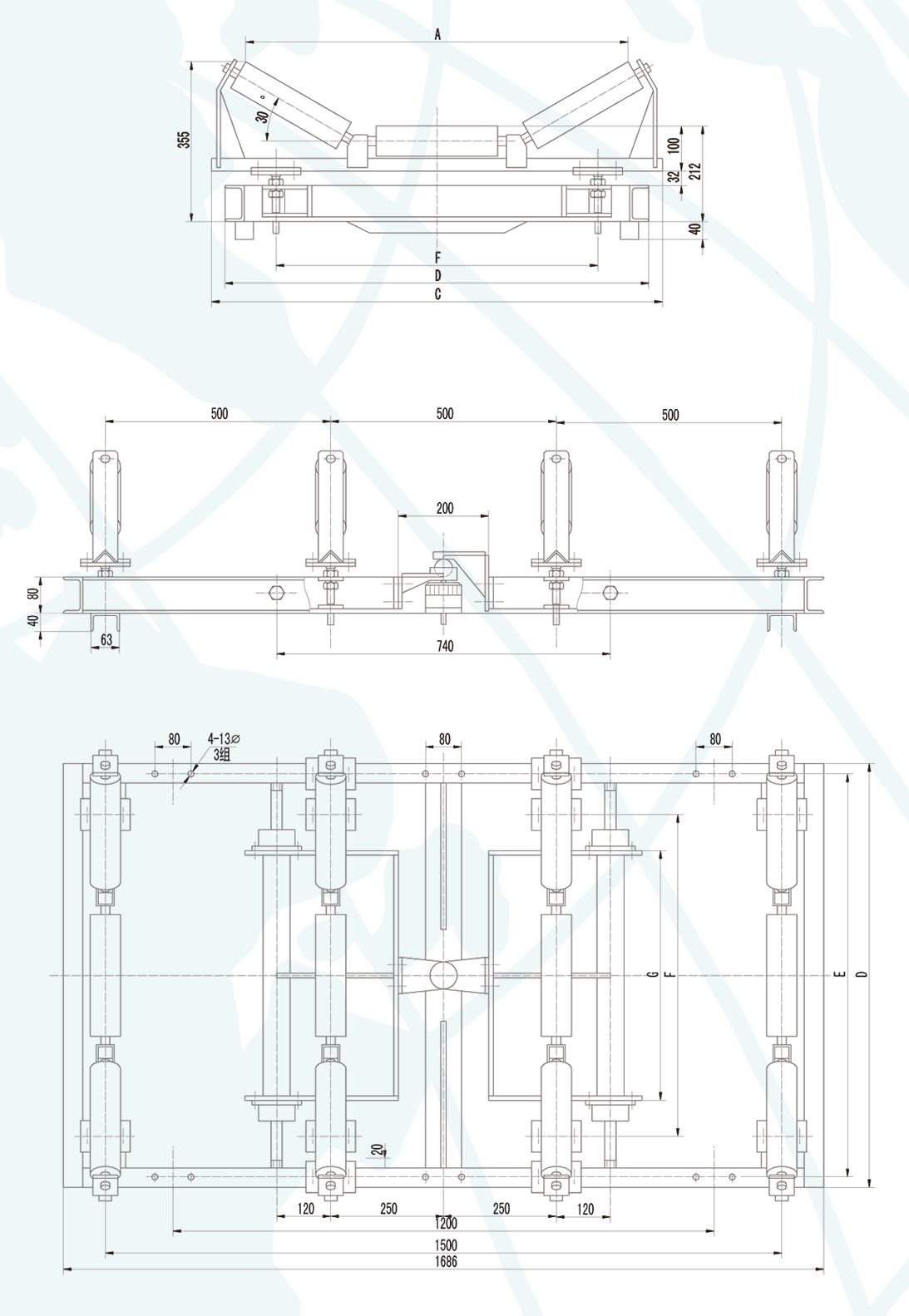

1. Weighing Frame SE-81
The steel weighing structure connected to the rubber conveyer has a adjusting roller and a weighing roller. The materials on the conveyer will be directly affecting the weight sensor.
The steel weighing structure connected to the rubber conveyer has a adjusting roller and a weighing roller. The materials on the conveyer will be directly affecting the weight sensor.

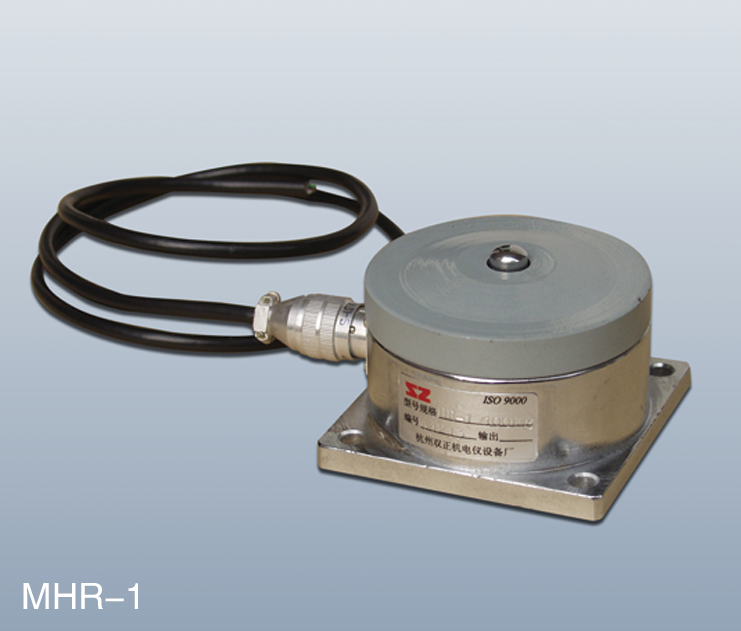

2. Weight Sensor MHR-1
It monitors weight signals of materials on the rubber belt.

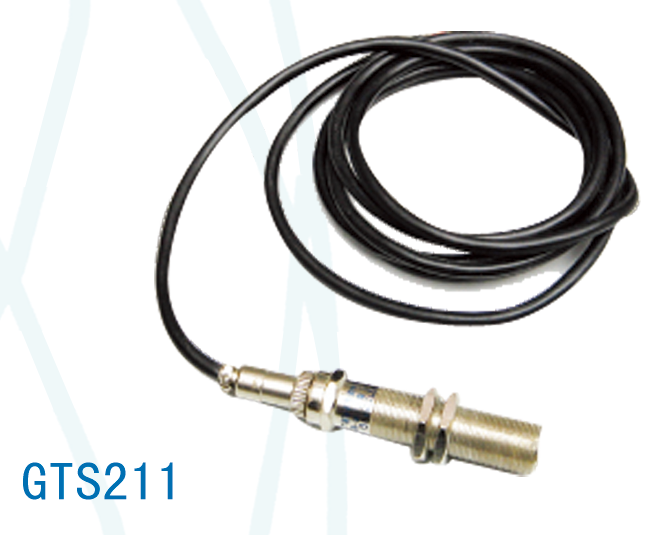

3. Speed Sensor GTS211
It monitors speed signals on the belt.
4. Weight Controller SE-51
For signal gathering, procession, computing, displaying and communicating.
III. Performance
◇ Weighing range: 1~1000 t/h
◇ Weighing accuracy: ≤1%
◇ Materials eligible for weighing:
Granularity: ＜100 mm
Humidity: <15%
Temperature: <80℃
◇ Maximum angle of belt conveyor: 20°
◇ Belt width: 500~1200 mm
◇ Belt speed: 0.1~4 m/s
IV. Features
◇ Double weighing frames for faster belt conveyers.
◇ Weight on the belt is directly transferred to the weight sensor, increasing accuracy.
◇ Equipped with SE-51 weighing controller, with high reliability and precision.
◇ Easy installation and maintenance
◇ Can fit to all types of belt conveyer
◇ Weights are statically calibrated.
V. Sealed Beam-type Weight Sensor
Measuring range: 100, 150, 200 kg
Accuracy: 0.1% F.S
Output: 1.5m V/V
Impedance: 350Ω
Safe overload: 150%
VI. Non-contact Round Pipe Speed Sensor
Measuring range: 1~2000 rpm
Frequency range: 1~20 KHz
Sensing distance: ≤3 mm
Working voltage: DC 8~30 V
Output mode: 0C
Output wave form: square wave
Working temperature: -20~75℃
