SE-10 Feed Bin Weighing System
I. Product Summary
The SE-10 Feed Bin Weighing System consists of Weighing Feed Bin (provided by customers), weight sensor (one or multiple, determined by engineers) and weighing control cabinet. It is designed for weighing powdery and granular materials in industries including metallurgy, building materials, medicine, chemical industry and food.

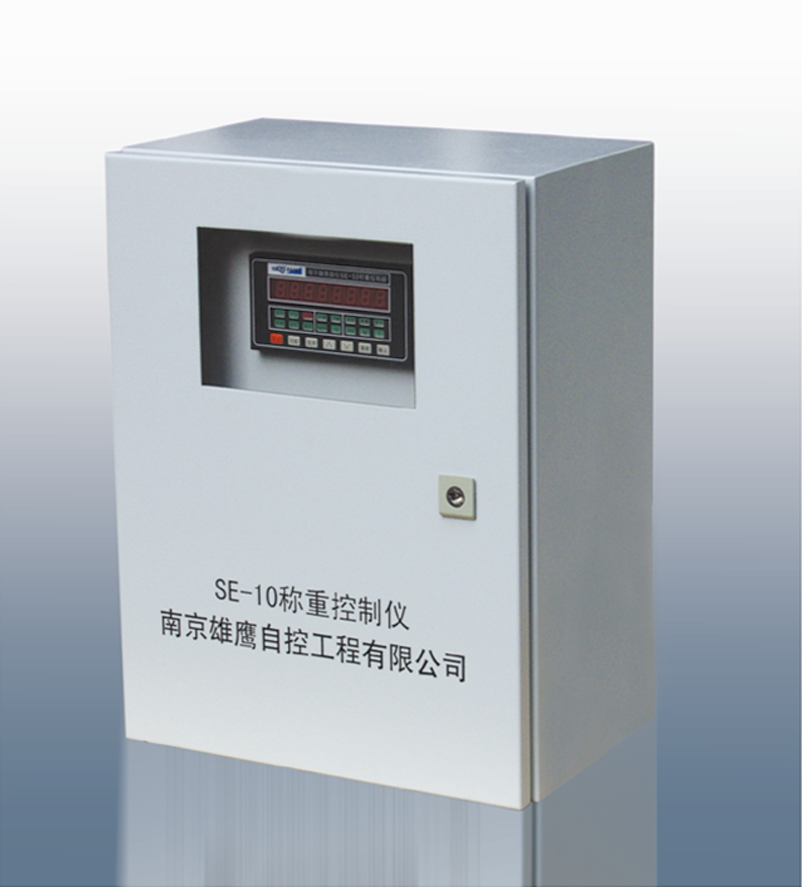

The essence of weighing control cabinet is our highly precise and reliable SE-53 Weighing Digital Display Controller, which is easy to configure and use.
As the weight sensor gathers signal from the feed bin, the weighing control cabinet will process the signal and provide material weight display, upper and lower limit alarm, material weight signal output and PID regulatory signal output. The cabinet can be connected to DCS easily.
II. Performance
◇ System weighing error: ≤1% (equivalent weight error between 10% ~ 100%)
◇ Material property: powdery
◇ Working environment:
Temperature: -20~60℃
Relative humidity: ＜85%
◇ Control cabinet:
Dimensions: 400w×500h×250d mm
Power: ac 200v 50hz
Material weight signal output: dc4~20 ma
PID regulatory signal output: dc4~20 ma or 1~5v
Standard rs485 digital serial interface
Bridge weight sensor is used for feed bin weighing
◇ Measuring range: 10, 15, 20, 25, 30, 40, 50 t
◇ Sensitivity: 2.0 mv/v
◇ Precision: 0.02% fs
◇ Output resistance: 700ω
◇ Bridge voltage: -30—+ 60℃
◇ Maximum overload: 150% FS
The SE-10 Feed Bin Weighing System consists of Weighing Feed Bin (provided by customers), weight sensor (one or multiple, determined by engineers) and weighing control cabinet. It is designed for weighing powdery and granular materials in industries including metallurgy, building materials, medicine, chemical industry and food.
The essence of weighing control cabinet is our highly precise and reliable SE-53 Weighing Digital Display Controller, which is easy to configure and use.
As the weight sensor gathers signal from the feed bin, the weighing control cabinet will process the signal and provide material weight display, upper and lower limit alarm, material weight signal output and PID regulatory signal output. The cabinet can be connected to DCS easily.
II. Performance
◇ System weighing error: ≤1% (equivalent weight error between 10% ~ 100%)
◇ Material property: powdery
◇ Working environment:
Temperature: -20~60℃
Relative humidity: ＜85%
◇ Control cabinet:
Dimensions: 400w×500h×250d mm
Power: ac 200v 50hz
Material weight signal output: dc4~20 ma
PID regulatory signal output: dc4~20 ma or 1~5v
Standard rs485 digital serial interface
Bridge weight sensor is used for feed bin weighing
◇ Measuring range: 10, 15, 20, 25, 30, 40, 50 t
◇ Sensitivity: 2.0 mv/v
◇ Precision: 0.02% fs
◇ Output resistance: 700ω
◇ Bridge voltage: -30—+ 60℃
◇ Maximum overload: 150% FS
