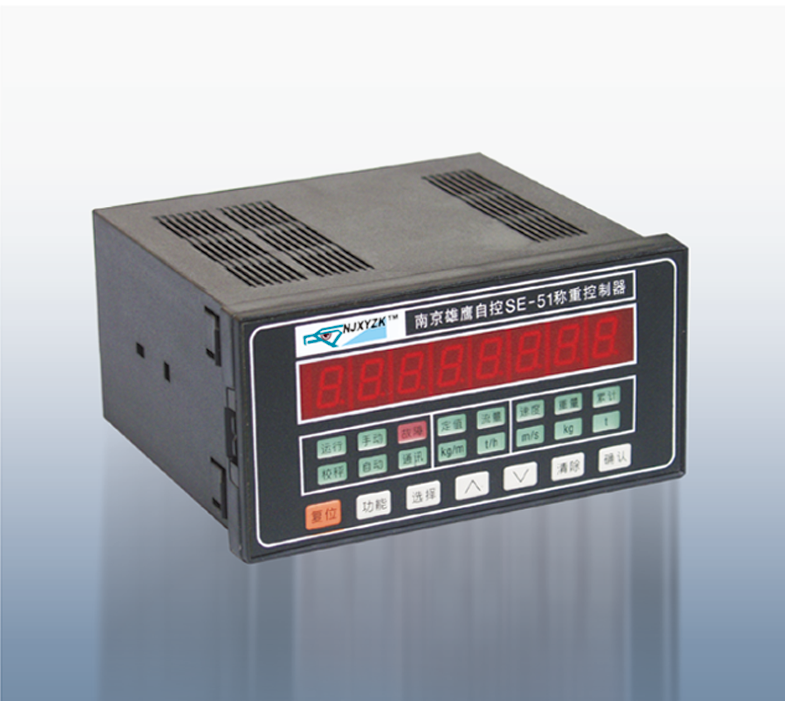

SE-5 Series Smart Digital Display Controller
I. Product Summary The SE-5 Series Smart Digital Display Controller is a dedicated computer smart digital display controller developed by our electronic integration technology and digital technology. It serves as the dedicated controller of our mechatronic products, including stock bin weigher, solids flowmeter, speed-regulating quantifiable rubber belt feeding scale and rubber belt scale.
The controller has high accuracy in measuring and controlling, high resistance against disturbance, dust and shock, an adaptive power supply, and is highly reliable and easy to install. It is widely used for measuring and controlling solid granular and powdery materials in the producing process of building materials, metallurgy, chemical industry, medicine and food.
II. Functions
◇ On-site sensor data collecting, processing and preserving
◇ Selective display of working parameters
◇ Working status display
◇ Decortication, weighing and accumulation
◇ Power-off protection for data
◇ Malfunction diagnose and alarm
◇ PID controlled output, can be easily switched between manual and automatic control
◇ Improved switch value and analog i/o interface
◇ RS485/RS232 serial interface
III. Features
◇ Highly integrated and modularized
◇ 24 bit high resolution A/D conversion
◇ Double 12 bit D/A conversion
◇ Unique digital noise filtering
◇ High-performance switching power supply
◇ 7 bit high-brightness 0.5″ LED
◇ Fully digital-calibrated control with touchscreen
◇ Adaptable for all resistance-type strain weight sensor for both four-wire and six-wire systems
IV. Eligible Equipment and Corresponding Controllers
SE-51 Speed-regulating Quantifiable Rubber Belt Feeding Scale, Rubber Belt Weighing Scale
SE-52 Solids Flowmeter
SE-53 Stock Bin Weigher
